CNC Pipe Bender

By combining the left and right bending mechanism with the mechanism of rotating the material, multidirectional bending processing has been realized.
In normal press working and other benders, complex composite R shapes (curve continuity) that require multiple steps can be molded in one process.

Contact us for more information or download the catalog.



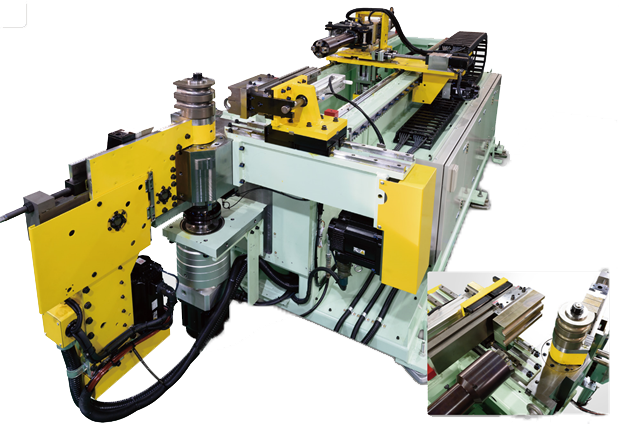

�I�[���T�[�{

For companies aiming to create clean and smart factories!!
Selectable from KBC series,BNC series, and BNM series


�I�[���T�[�{�@�_�E�����[�h





KBC-F�V���[�Y

Powerful bending process backed by precision from "profiling bending" to "controlling bending"! !

Small to Medium type KBC-F�V���[�Y_���^�@�_�E�����[�h
tem Type 15 Type 30 Type 40 Type 50
Max O.D. Bending(SPG pipe) Φ15xt1.6mm Φ31.8xt2.3mm Φ42.7xt3.5mm Φ50.8xt5.0mm
Max bend radius R50mm R100mm R150mm R200mm
Mandrel Effective length 1500mm 2000mm



Medium to large type KBC-F�V���[�Y_��^�@�_�E�����[�h
tem Type 60 Type 80 Type 100 Type 120
Max O.D. Bending(SPG pipe) Φ60.5xt5.5mm Φ80xt4.5mm Φ101.6xt4.5mm Φ127xt5.0mm
Max bend radius R250mm R300mm R400mm R550mm
Mandrel Effective length 2000mm 3000mm

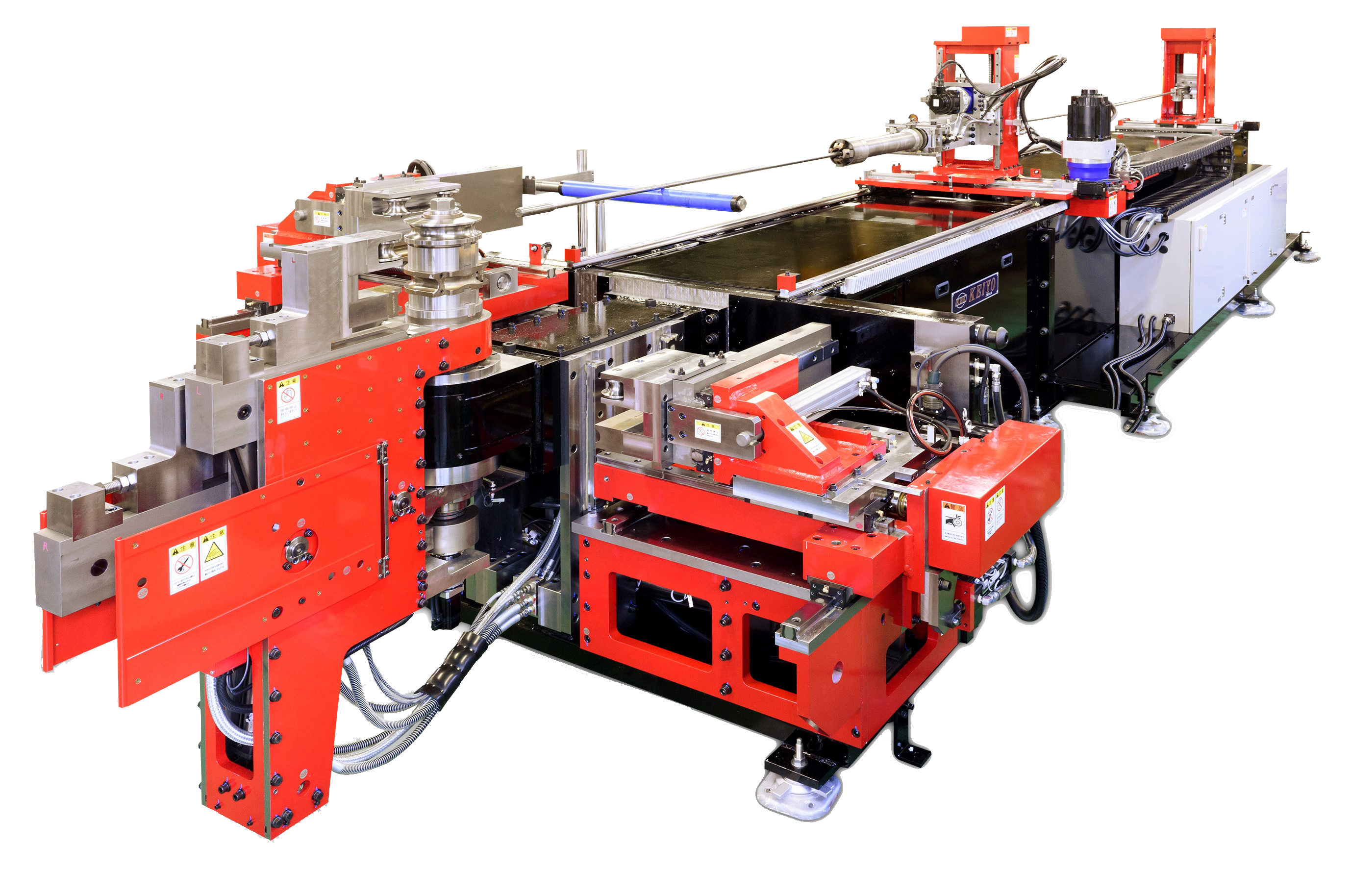

SBC-F�V���[�Y

2012 Chiba Monozukuri Product Certification
2013 Kanto Branch Technology Award

SBC-F�V���[�Y�@�_�E�����[�h





Item Type 15 Type 30 Type 40 Type 50
Max O.D. Bending(SPG pipe) Φ15xt1.6mm Φ31.8xt2.3mm Φ42.7xt3.5mm Φ50.8xt3.2mm
Max bend radius R50mm R100mm R150mm R200mm
Mandrel Effective length 1000mm 2000mm





BNC-F�V���[�Y

All AC servos can also be selected as an option with consideration for the environment

BNC-F�V���[�Y�@�_�E�����[�h



Item Type 15 Type 30 Type 40 Type 50
Max O.D. Bending(SPG pipe) Φ15.8xt2.3mm Φ31.8xt2.3mm Φ42.7xt3.5mm Φ50.8xt5.0mm
Max bend radius R50mm R100mm R150mm R200mm
Mandrel Effective length 1000mm 2000mm

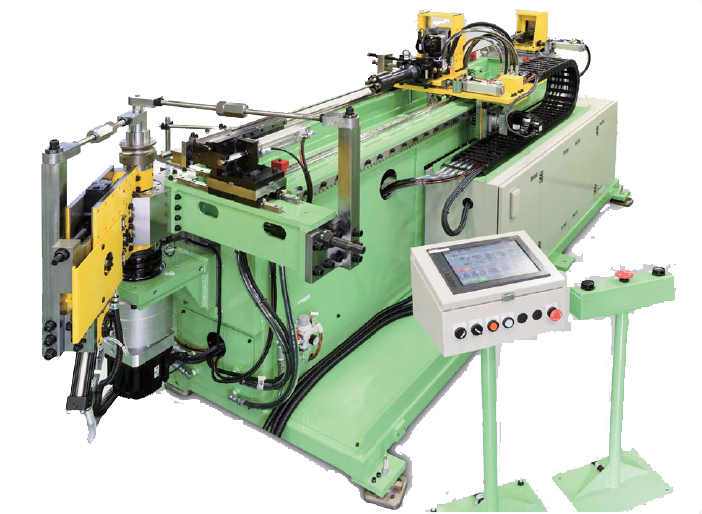

BNM-F�V���[�Y

Cost performance series for users who need core metal equipment


BNM-F�V���[�Y�@�_�E�����[�h





Item Type 15 Type 30 Type 40 Type 50 Type 60
Max O.D. Bending(SPG pipe) Φ15.8x t2.3mm Φ31.8x t2.3mm Φ42.7x t3.5mm Φ50.8x t5.0mm Φ60.5x t5.5mm
Max bend radius R50mm R100mm R150mm R200mm R250mm
Mandrel Effective length 1000mm 2000mm





MAC�V���[�Y

Ac servo motor mounted on bending drive source

MAC�V���[�Y �_�E�����[�h

Item Type 30
Max O.D. Bending Φ31.8x t2.3mm
Max bend radius R150mm
